OK-PF814 TconBoard MainBoard (ESP32-S3) For 8.14 Inch Spectra 6 E Ink Display

It is equipped with ESP32-S3 chip, which is convenient for R & D personnel to quickly start project development and product demonstration, and can be updated through bluetooth/ wifi and other communication methods.

Features:

Even power off, the last image of the screen can be kept for a long time.

Supports Bluetooth BLE/WIFI function, and (If customized) you can choose from a variety of ways （WIFI/NFC/4G）to update the display.

Using data compression transmission technology, the entire screen data is transmitted in only seconds.

*Customized service is supported.

PARAMETER	OK-PF814
PLATFORM	ESP32-S3
FUNCTION	Tcon Board/Main Board
SUITABLE SIZE	8.14" Spectra 6 E-Paper Display

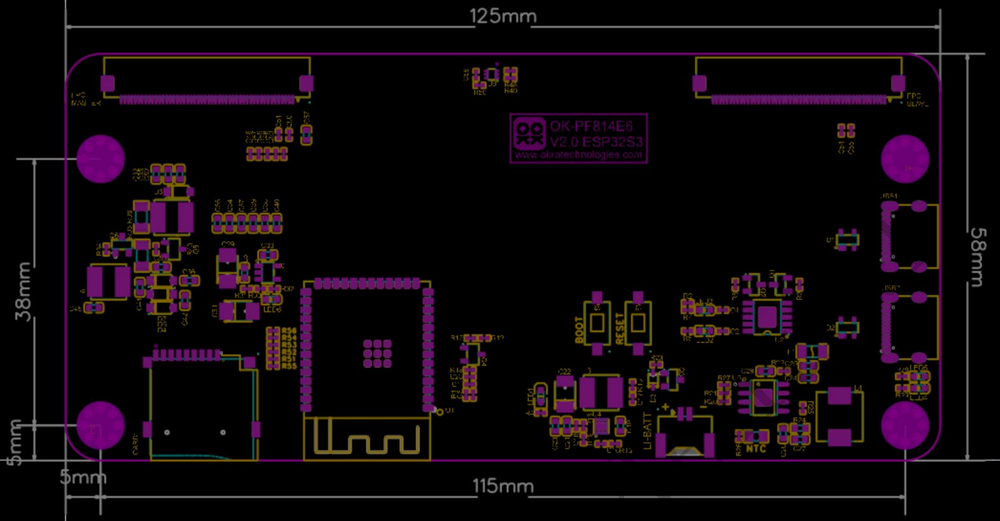

OUTSIDE DIMENSION	125mmx58mm
INTERFACE	Type-C
POWER INPUT	DC5V
FEATURE	Support Wi-Fi and Bluetooth communication
GRAYSCALE LEVEL	Max 16 Grayscale
OPERATING TEMP.	-25℃~60℃
RESERVED FUNCTION	Type-C, LED indicator, User-defined button, Reset button, Flash chip, Current detection
MAIN FUNCTION	Drive/Test/Evaluate e-paper display; Quickly demonstrate the effects of e-paper display; Product comes with tf card, support one-click slideshow； Support secondary development;
