OK-ED133UT3-FA01 is a 13.3 inch large size e-ink screen, parallel interface, 39 pins, 1600*1200 resolution. It is capable of displaying images in 2 to 16 gray levels (1 to 4 bits) depending on the display controller and the associated waveform file it to be used.
It offers impressive refresh rates, ensuring smooth and efficient performance for various applications.
Featuring Frontlight and AntiGlare Film, it can even flash in low-light conditions, making it an ideal choice for supermarket display boards, bus stop signs, industrial park signs, industrial applications and other related products.
PART NUMBER | OK-ED133UT3-FA01 |
TYPE | Dot Matrix |
SIZE | 13.3 inch |
IC | / |
RESOLUTION | 1600x1200 |
OUTLINE SIZE(mm) | 287.42*213.65*1.69 |
ACTIVE SIZE(mm) | 270.4x202.8 |
PIXEL PITCH(mm) | / |
OPERATING TEMP. | -15℃~65℃ |
STORAGE TEMP. | -25℃~70℃ |
CONNECTOR | 39 Pin FPC |
MAX GRAYSCALE | 16 |
COLOR | Black,White |
INTERFACE | TTL |
FULL REFRESH(s) | 3 |
FAST REFRESH(s) | 1.5 |
PARTIAL REFRESH TIME(s) | 0.26 |
STANDBY POWER CONSUMPTION (mW) | 0.003 |
FRONT-LIT CONNECTOR | 6 pin FPC |
FRONT-LIT NUMBER OF LED LIGHT | 20 |
FRONT-LIT CIRCUIT MODE | 4 in series, 5 in parallel |
FRONT-LIT OPERATING VOLTAGE | 12V Max |
FRONT-LIT OPERATING CURRENT | 100mA Max |

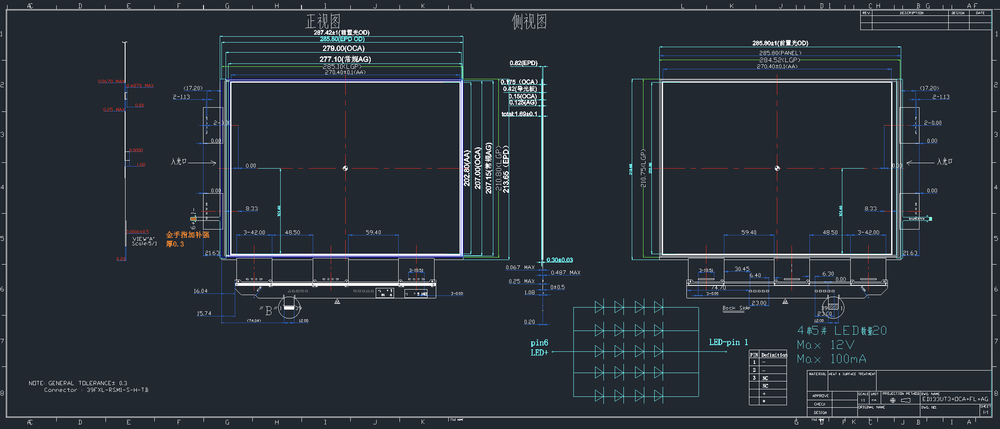

Structural Drawings.png | 46.77KB | Download |
|
|
