Product description:
OK-EC280TT1-FA01 is a 28 inch large size e-ink screen, parallel interface, 51 pins, 3840*1080 resolution. It is capable of displaying images in 2 to 16 gray levels (1 to 4 bits) depending on the display controller and the associated waveform file it to be used.
It offers impressive refresh rates, ensuring smooth and efficient performance for various applications.
Featuring Frontlight and AntiGlare Film, it can even flash in low-light conditions, making it an ideal choice for supermarket display boards, bus stop signs, industrial park signs, industrial applications and other related products.
PART NUMBER | OK-ED280TT1-FA01 |
TYPE | Dot Matrix |
SIZE | 28 inch |
RESOLUTION | 3840x1080 |
OUTLINE SIZE(mm) | 698.6x217x1.826 |
ACTIVE SIZE(mm) | 683.52x192.24 |
PIXEL PITCH(mm) | 0.178x0.178 |
OPERATING TEMP. | -15℃~65℃ |
STORAGE TEMP. | -25℃~70℃ |
CONNECTOR | 51 Pin FPC |
GRAYSCALE | 16 |
COLOR | B&W |
INTERFACE | mini-LVDS |
FULL REFRESH TIME(s) | 1 |
PARTIAL REFRESH TIME(s) | 0.013 |
TYPICAL POWER(mW) | / |
STANDBY POWER (mW) | 6 |
FRONT LIGHT, TOUCH SCREEN | Optional |

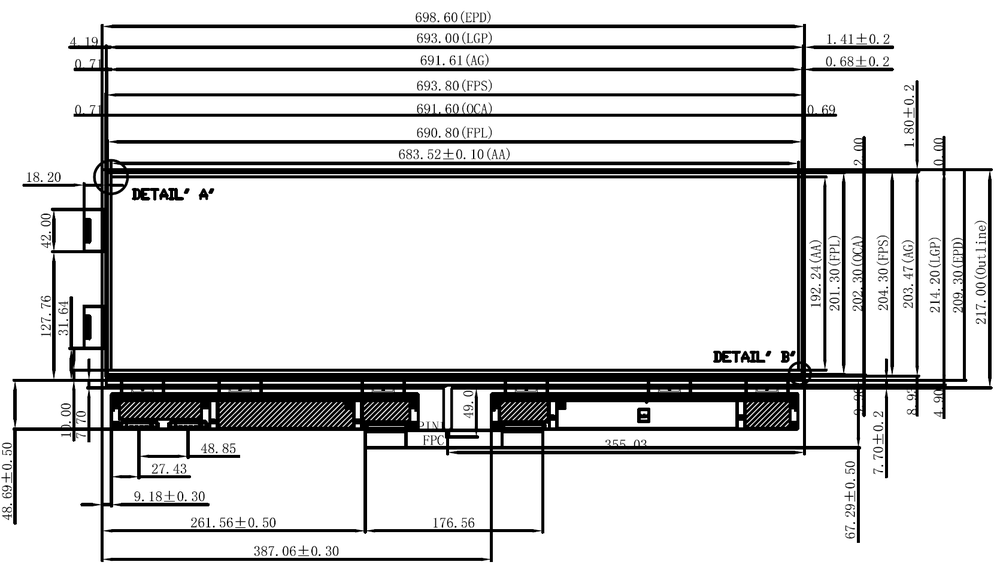

28 inch Frontlight drawings.png | 95.48KB | Download |
|
|
