Product description:
OK-EL315TW1 is a 31.5 inch spectra6 full color large size e-ink screen, 2560x1440 resolution, comparing with ACeP technology, this product has better color performance and faster refresh speed, will become the mainstream prodcuts in near future.
Featuring Frontlight and AntiGlare Film, it can even flash in low-light conditions, making it an ideal choice for digital photo frames and signage boards and other related products.
PART NUMBER | OK-EL315TW1-FA01 |
TYPE | Dot Matrix |
SIZE | 31.5 inch |
IC | / |
RESOLUTION | 2560x1440 |
PPI | \ |
OUTLINE SIZE(mm) | 703.52x406.48x1.92 |
ACTIVE SIZE(mm) | 696.32x391.68 |
PIXEL PITCH(mm) | 0.272x0.272 |
OPERATING TEMP. | 0℃~50℃ |
STORAGE TEMP. | -25℃~70℃ |
CONNECTOR | 51 Pin FPC |
COLOR | Full color( Spectra 6) |
INTERFACE | QSPI |
FULL REFRESH TIME(s) | 17 |
TYPICAL POWER(mW) | TBD |
STANDBY POWER (mW) | TBD |
FRONT LIGHT, TOUCH SCREEN | Optional |

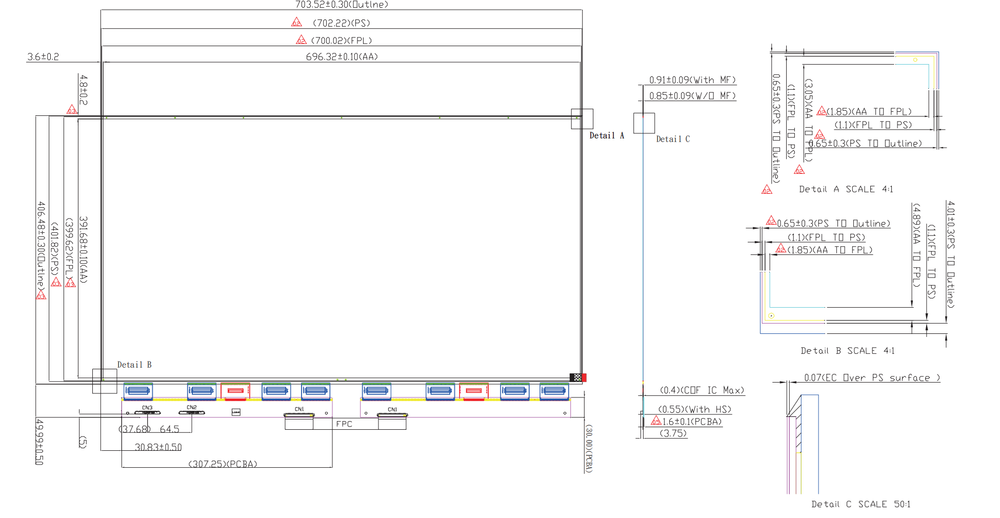

Structural Drawings.png | 150.81KB | Download |
|
|
