Product description:
OKRA0150BNS810F0 is a 1.5-inch black and white color E-ink display, 200x200 high resolution, 24-pin FPC connection, optional FPC connector. communicated through SPI interface, with embedded controller (COG package) and on-chip storage waveform, support partial refresh.
Advantages: Ultra-low power consumption, viewing angle close to 180 degrees, ideal for applications such as smart watches, smart tags, wearable devices, smart home applications, industrial instruments, smart cards and other related products.
PART NUMBER | OKRA0150BNS810F0 |
TYPE | Dot Matrix |
SIZE | 1.5 inch |
IC | SSD1681 |
RESOLUTION | 200x200 |
PPI | 188 |

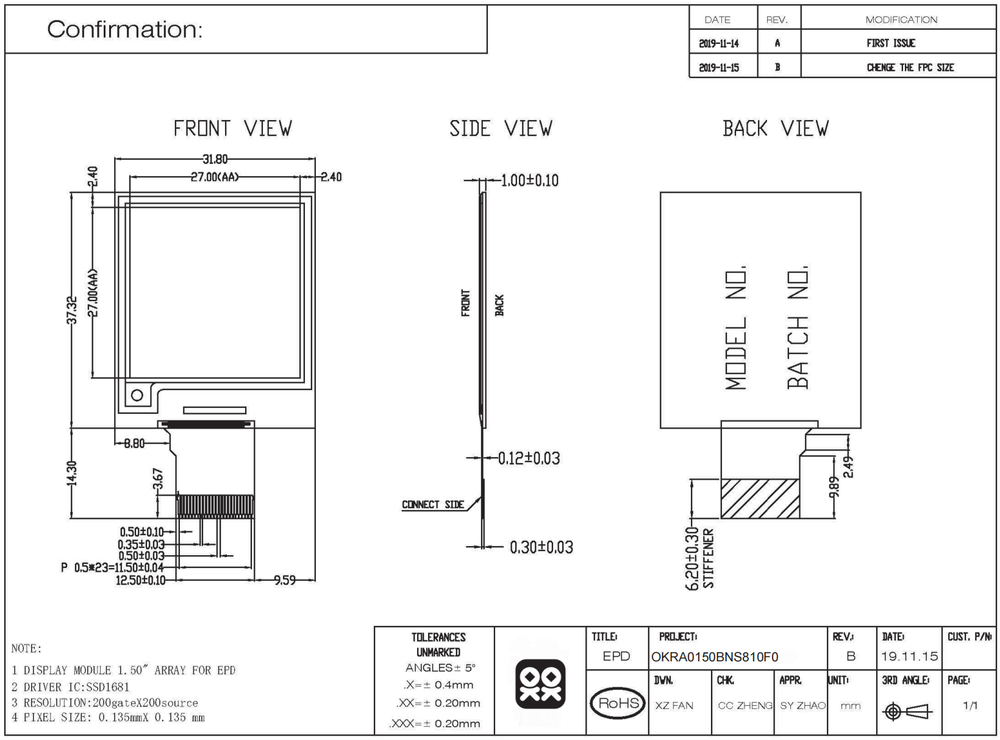

OUTLINE SIZE(mm) | 31.8(H)×37.32 (V) ×1.0 (D) |
ACTIVE SIZE(mm) | 27x27 |
PIXEL PITCH(mm) | 0.135x0.135 |
OPERATING TEMP. | 0℃~50℃ |
STORAGE TEMP. | -25℃~70℃ |
CONNECTOR | 24 Pin FPC |
MAX GRAYSCALE | 2 |
COLOR | Black,White |
INTERFACE | SPI |
FULL REFRESH TIME(s) | 3 |
FAST REFRESH TIME(s) | 1.5 |
PARTIAL REFRESH TIME(s) | 0.26 |
TYPICAL POWER(mW) | 10.5 |
STANDBY POWER (mW) | 0.003 |
FRONT LIGHT, TOUCH SCREEN | Optional |
|
|
