Product description:
OKRA0150RWS810F0 is a 1.5inch three color E-ink display, 200x200 high resolution, 24-pin FPC connection, optional FPC connector, communication through SPI interface, with embedded controller (COG package) and on-chip storage waveform.
Advantage: Ultra-low power consumption, viewing angle close to 180 degrees, ideal for shelf labels, smart labels, wearables, smart home applications, industrial instruments, smart cards and other related products.
*Note: This electronic paper does not support partial refresh
PART NUMBER | OKRA0150RWS810F0 |
TYPE | Dot Matrix |
SIZE | 1.5 inch |
IC | SSD1681 |
RESOLUTION | 200x200 |
PPI | 188 |

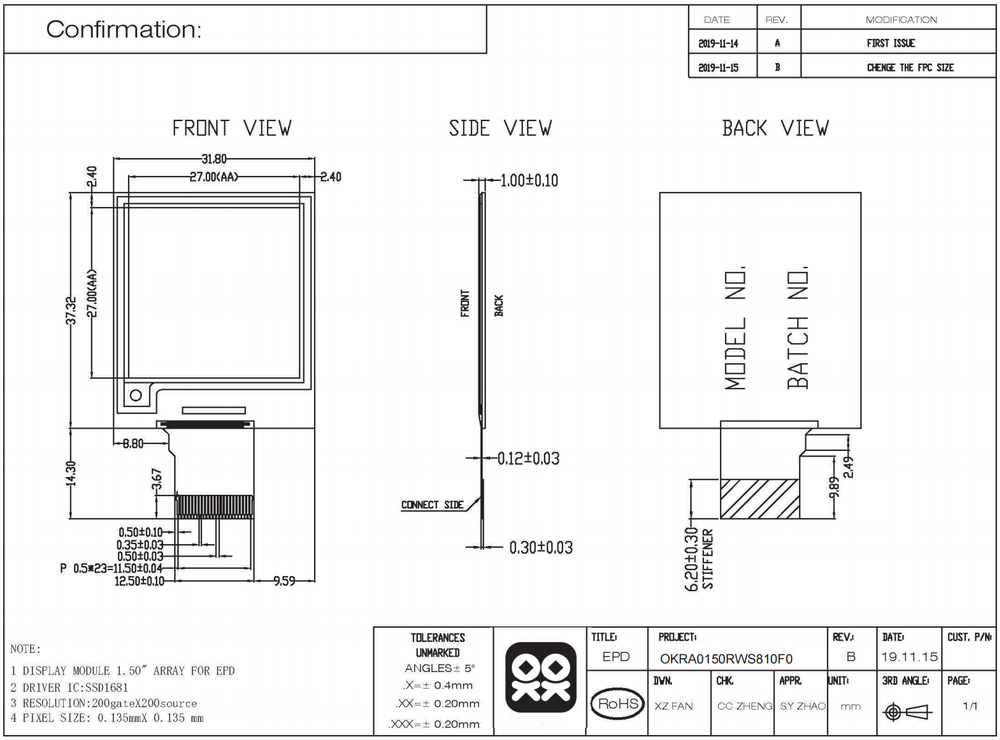

OUTLINE SIZE(mm) | 31.8(H)×37.32 (V) ×1.0 (D) |
ACTIVE SIZE(mm) | 27x27 |
PIXEL PITCH(mm) | 0.135x0.135 |
OPERATING TEMP. | 0℃~50℃ |
STORAGE TEMP. | -25℃~70℃ |
CONNECTOR | 24 Pin FPC |
GRAYSCALE | 2 |
COLOR | Black,White,Red |
INTERFACE | SPI |
FULL REFRESH TIME(s) | 17 |
TYPICAL POWER(mW) | 9.6 |
STANDBY POWER (mW) | 0.003 |
FRONT LIGHT, TOUCH SCREEN | Optional |
|
|
