Product description:
OKRA0154RYF661F35 is a 1.54 inch four color E-ink display, 152x152 resolution. 24-pin FPC connection, optional FPC connector, communication through SPI interface, with embedded controller (COG package) and on-chip storage waveform.
Advantage: It has a thin and compact shape, ultra-low power consumption, viewing angle close to 180 degrees,ideal for shelf labels, smart labels, wearables, smart home applications, industrial instruments, smart cards and other related products.
*Note: This electronic paper does not support partial refresh
PART NUMBER | OKRA0154RYF661F35 |
TYPE | Dot Matrix |
SIZE | 1.54 inch |
IC | JD79661 |
RESOLUTION | 152x152 |
PPI | 140 |

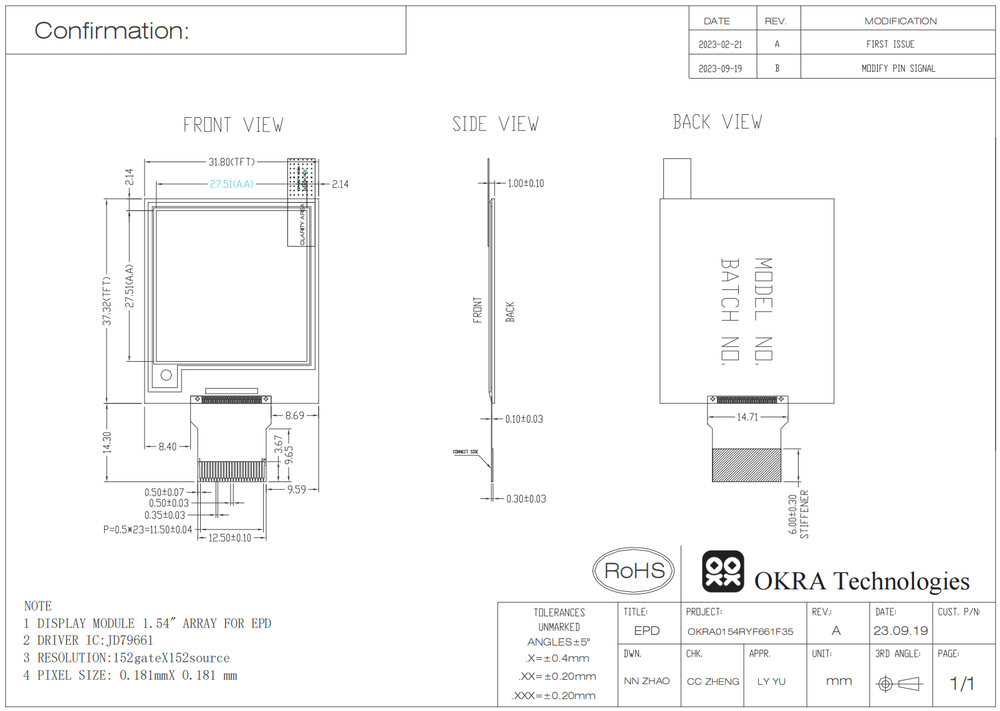

OUTLINE SIZE(mm) | 37.32*31.8*1.0 |
ACTIVE SIZE(mm) | 27.512x27.512 |
PIXEL PITCH(mm) | 0.181x0.181 |
OPERATING TEMP. | 0℃~50℃ |
STORAGE TEMP. | -25℃~70℃ |
CONNECTOR | 24 Pin FPC |
GRAYSCALE | 2 |
COLOR | Black,White,Red, Yellow |
INTERFACE | SPI |
FULL REFRESH TIME(s) | 17 |
TYPICAL POWER(mW) | 9 |
STANDBY POWER (mW) | 0.003 |
FRONT LIGHT, TOUCH SCREEN | Optional |
|
|
