Product description:
OKRA0213BNS800F41 is a 2.13 inch black and white color E-ink display, 250x122 resolution, communicated through SPI interface, supports 2 grayscales, and partial refresh.
Advantage: It has Ultra-low power consumption,viewing angle close to 180 degrees, ideal for applications such as shelf labels, smart labels, smart home applications, industrial instruments, smart cards and other related products.
PART NUMBER | OKRA0213BNS800F41 |
TYPE | Dot Matrix |
SIZE | 2.13 inch |
IC | SSD1681 |
RESOLUTION | 250x122 |
PPI | 130 |

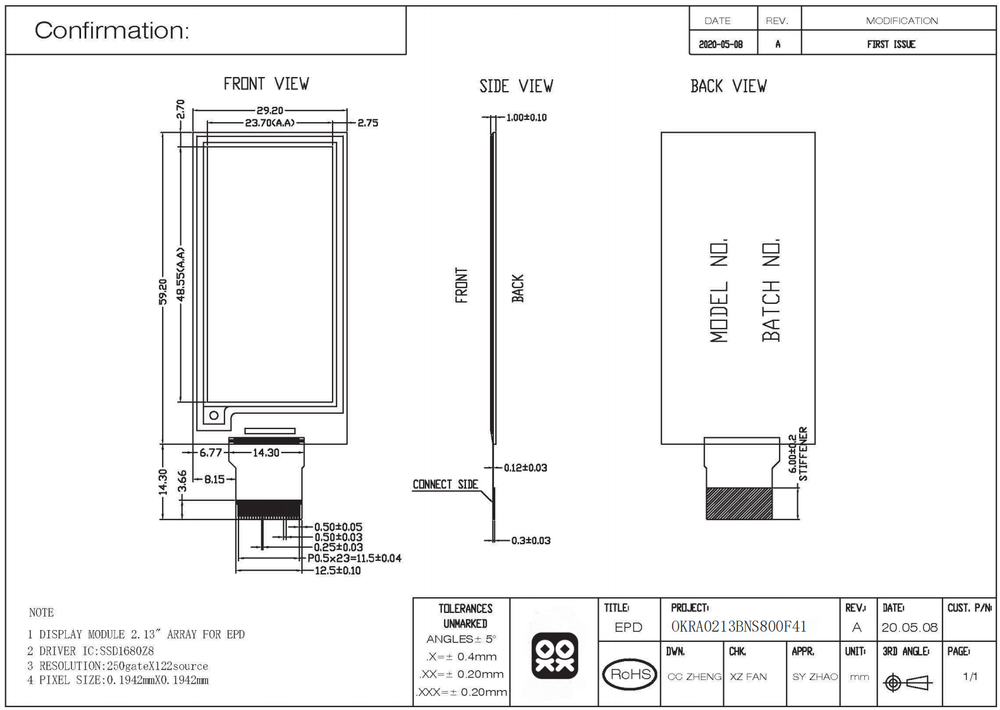

OUTLINE SIZE(mm) | 59.2x29.2x1.0 |
ACTIVE SIZE(mm) | 48.55x23.705 |
PIXEL PITCH(mm) | 0.1942x0.1942 |
OPERATING TEMP. | 0℃~50℃ |
STORAGE TEMP. | -25℃~70℃ |
CONNECTOR | 24 Pin FPC |
GRAYSCALE | 2 |
COLOR | Black,White |
INTERFACE | SPI |
FULL REFRESH TIME(s) | 3 |
PARTIAL REFRESH TIME(s) | 0.26 |
TYPICAL POWER(mW) | 10.5 |
STANDBY POWER (mW) | 0.003 |
FRONT LIGHT, TOUCH SCREEN | Optional |
|
|
