E-paper Display 2.66 inch 296x152  OKRA0266BNS800F34
OVERIEW
SPECIFICATION
DOWNLOAD

Product description:


OKRA0266BNS800F34 is a 2.66 inch black and white color E-ink display,   296x152   resolution,with embedded controller (COG package) and waveform stored on-chip, communicated through SPI interface, supports 2 grayscales, and partial refresh.


Advantage:   Ultra-low power consumption,viewing angle close to 180 degrees. It is an excellent choice for applications such as shelf labels, smart labels, smart home applications, industrial instruments, smart cards and other related products.

PART NUMBER

OKRA0266BNS800F34

TYPE

Dot Matrix

SIZE

2.66 inch

IC

SSD1681

RESOLUTION

296x152

PPI

125

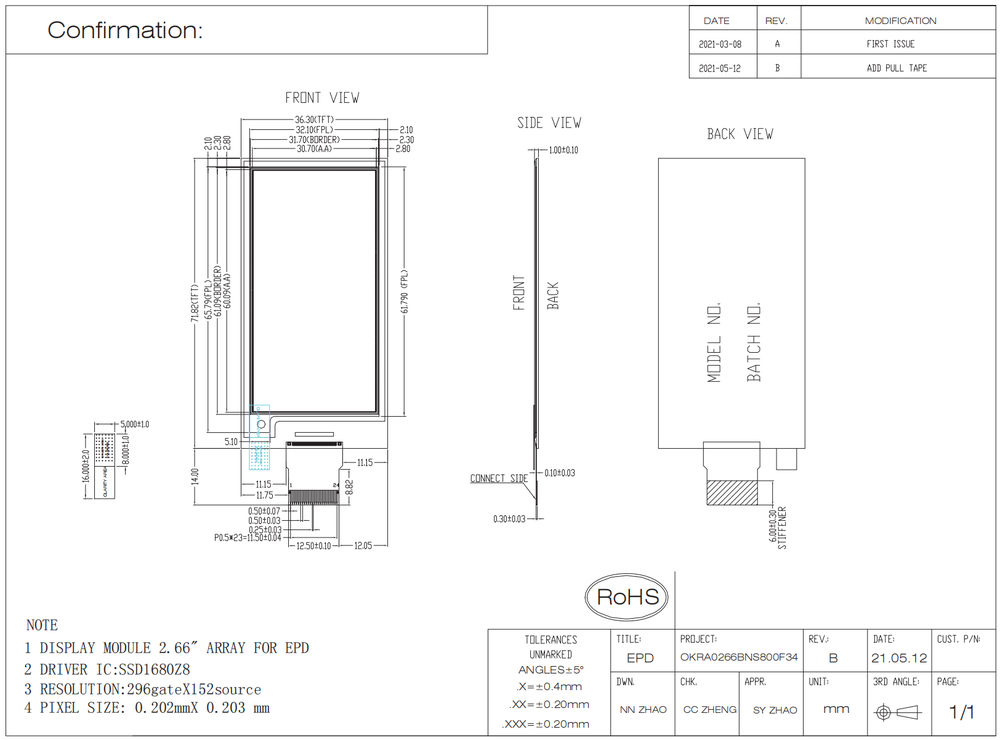

OUTLINE SIZE(mm)

71.82x36.304x1.0

ACTIVE SIZE(mm)

60.088x30.704

PIXEL PITCH(mm)

0.203x0.202

OPERATING TEMP.

0℃~50℃

STORAGE TEMP.

-25℃~70℃

CONNECTOR

24 Pin FPC

GRAYSCALE

2

COLOR

Black,White

INTERFACE

SPI

FULL REFRESH TIME(s)

4

PARTIAL REFRESH TIME(s)

0.26

TYPICAL POWER(mW)

10.5

STANDBY POWER (mW)

0.003

FRONT LIGHT, TOUCH SCREEN

Optional






OKRA0266BNS800F34_Spec.pdf
1.03MBDownload
Driver IC SSD1680 Spec.pdf
2.63MBDownload
OKRA0266BNS800F34 Arduino&ESP32 Sample Code.zip
10.94KBDownload
