E-paper Display 2.9 inch 296x128  OKRA0290BNS800F6
OVERIEW
SPECIFICATION
DOWNLOAD

Product description:


OKRA0290BNS800F6 is a 2.9 inch black and white color E-ink display,   296x128 resolution, communicated through SPI interface,with embedded controller (COG package) and waveform stored on-chip, supports 2 grayscales   and partial refresh.


Advantage:   Ultra-low power consumption, viewing angle close to 180 degrees, readable in sunlight.It is an excellent choice for applications such as shelf labels, smart labels, wearables, smart home applications, industrial instruments, smart cards and other related products.

PART NUMBER

OKRA0290BNS800F6

TYPE

Dot Matrix

SIZE

2.9 inch

IC

SSD1681

RESOLUTION

296x128

PPI

112

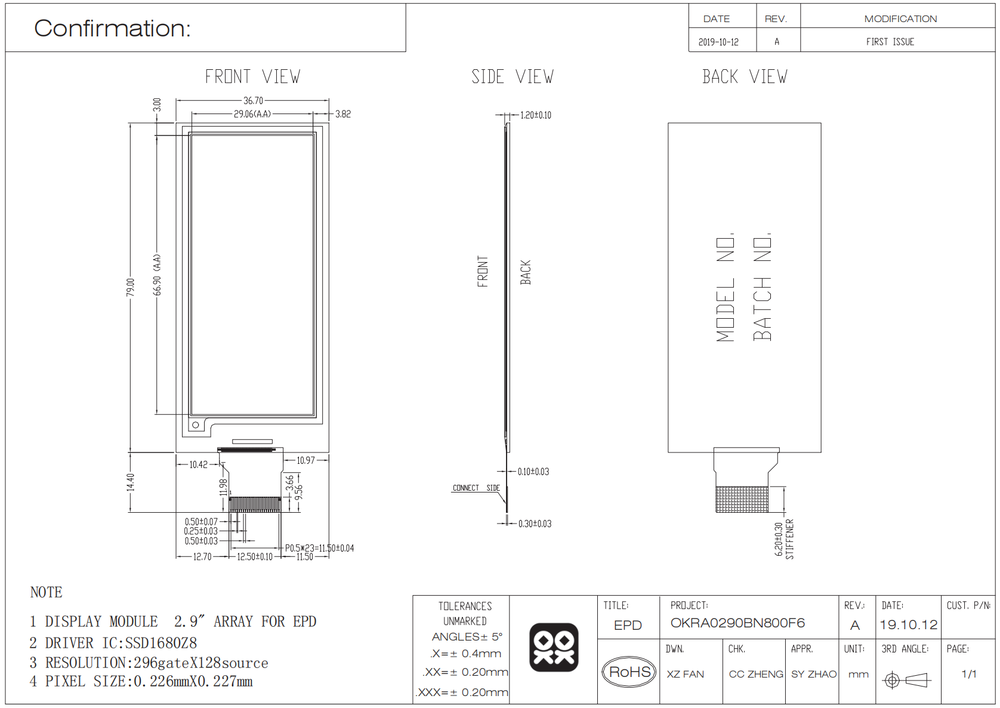

OUTLINE SIZE(mm)

79.0x36.7x1.2

ACTIVE SIZE(mm)

29.06×66.90

PIXEL PITCH(mm)

0.227x0.226

OPERATING TEMP.

0℃~50℃

STORAGE TEMP.

-25℃~70℃

CONNECTOR

24 Pin FPC

GRAYSCALE

2

COLOR

Black,White

INTERFACE

SPI

FULL REFRESH TIME(s)

4

PARTIAL REFRESH TIME(s)

0.26

TYPICAL POWER(mW)

10.5

STANDBY POWER (mW)

0.003

FRONT LIGHT, TOUCH SCREEN

Optional






OKRA0290BNS800F6_Spec.pdf
1.45MBDownload
Driver IC SSD1680 Spec.pdf
2.63MBDownload
OKRA0290BN800F6 Arduino&ESP32 Sample Code.zip
49.87KBDownload
