E-paper Display 4.2 inch 400x300  OKRA0420BNS830F0
OVERIEW
SPECIFICATION
DOWNLOAD

Product description:


OKRA0420BNS830F0 is a 4.2 inch black and white color E-ink display, 400x300 resolution,communicated through SPI interface, with embedded controller (COG package) and waveform can be stored in the on-chip OTP or written by the MCU, supports 2 grayscales   and partial refresh.


Advantage:   Ultra-low power consumption,viewing angle close to 180 degrees, readable in sunlight. It is an excellent choice for applications such as shelf labels, smart labels, wearables, smart home applications, industrial instruments, smart cards and other related products.

PART NUMBER

OKRA0420BNS830F0

TYPE

Dot Matrix

SIZE

4.2 inch

IC

SSD1681

RESOLUTION

400x300

PPI

120

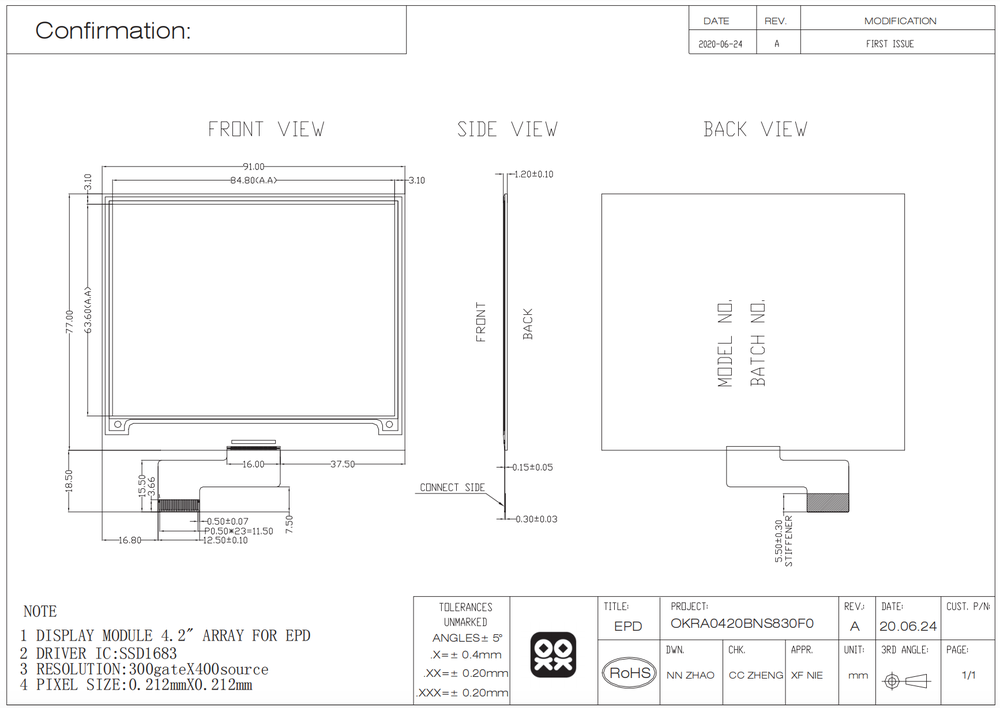

OUTLINE SIZE(mm)

91x77x1.2

ACTIVE SIZE(mm)

84.8x63.6

PIXEL PITCH(mm)

0.212x0.212

OPERATING TEMP.

0℃~50℃

STORAGE TEMP.

-25℃~70℃

CONNECTOR

24 Pin FPC

GRAYSCALE

2

COLOR

Black,White

INTERFACE

SPI

FULL REFRESH TIME(s)

4

PARTIAL REFRESH TIME(s)

0.26

TYPICAL POWER(mW)

12.6

STANDBY POWER (mW)

0.003

FRONT LIGHT, TOUCH SCREEN

Optional






OKRA0420BNS830F0_Spec.pdf
961.58KBDownload
Driver IC SSD1683 Spec.pdf
3.75MBDownload
OKRA0420BNS830F0 Arduino&ESP32 Sample Code.zip
14.9KBDownload
