E-paper Display 5.83 inch 648x480  OKRA0583BNF686F0
OVERIEW
SPECIFICATION
DOWNLOAD

Product description:


OKRA0583BNF686F0 is a 5.83 inch black and white color E-ink display, 648x480 resolution, 24pin FPC connection, communicated through SPI interface, with embedded controller (COG package) and on-chip waveform storage, supports 2 grayscales and partial refresh.


Advantage:   Ultra-wide viewing angle and ultra-low power consumption. It is an excellent choice for applications such as shelf labels, smart labels, wearables, smart home applications, industrial instruments, smart cards and other related products.

PART NUMBER

OKRA0583BNF686F0

TYPE

Dot Matrix

SIZE

5.83 inch

IC

JD79686AB

RESOLUTION

648x480

PPI

138

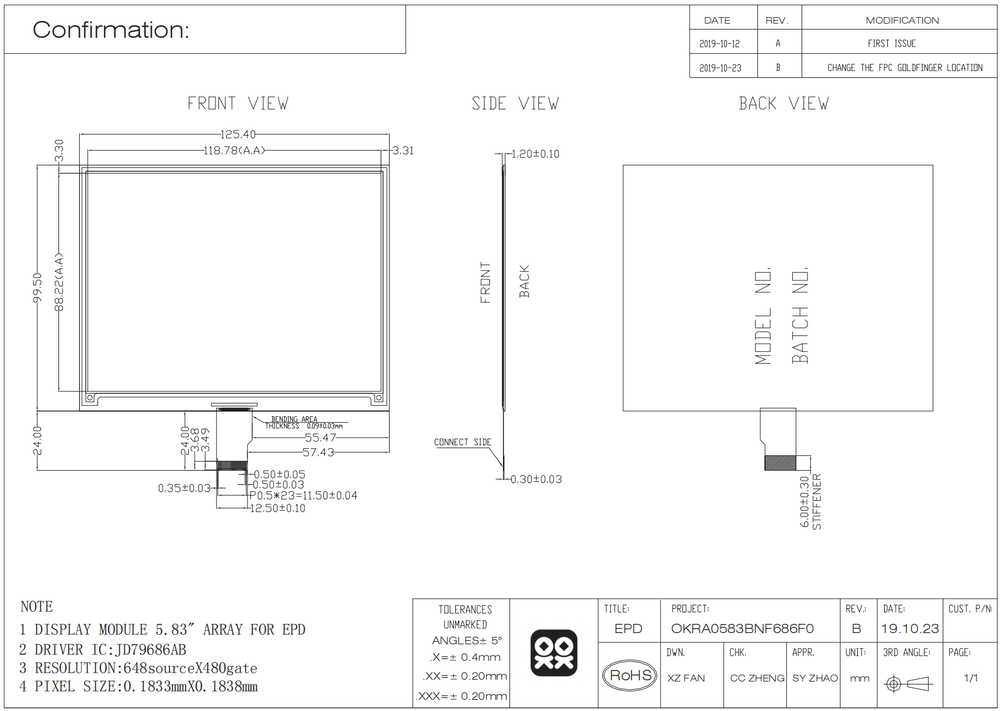

OUTLINE SIZE(mm)

125.4x99.5x1.2

ACTIVE SIZE(mm)

118.78x88.22

PIXEL PITCH(mm)

0.1838x0.1833

OPERATING TEMP.

0℃~50℃

STORAGE TEMP.

-25℃~70℃

CONNECTOR

24 Pin FPC

GRAYSCALE

2

COLOR

Black,White

INTERFACE

SPI

FULL REFRESH TIME(s)

4

PARTIAL REFRESH TIME(s)

0.26

TYPICAL POWER(mW)

24

STANDBY POWER (mW)

0.003

FRONT LIGHT, TOUCH SCREEN

Optional






OKRA0583BNF686F0_Spec.pdf
4.92MBDownload
Driver IC JD79686AB Spec.pdf
2.32MBDownload
OKRA0583BNF686F0 Arduino&ESP32 Sample Code.zip
18.12KBDownload
