Product description:
OKRA0750RYF665F60 is a 7.5 inch four color E-ink display, 800x480 resolution, 24pin FPC connection, communicated through SPI interface, with embedded controller (COG package) and on-chip waveform storage.
Advantage: Ultra-wide viewing angle and ultra-low power consumption. Ideal for shelf labels, smart home applications, industrial instruments, electronic conference table cards and other related products.
*Note: This electronic paper does not support partial refresh
PART NUMBER | OKRA0750RYF665F60 |
TYPE | Dot Matrix |
SIZE | 7.5 inch |
IC | JD79665AA |
RESOLUTION | 800x480 |
PPI | 124 |

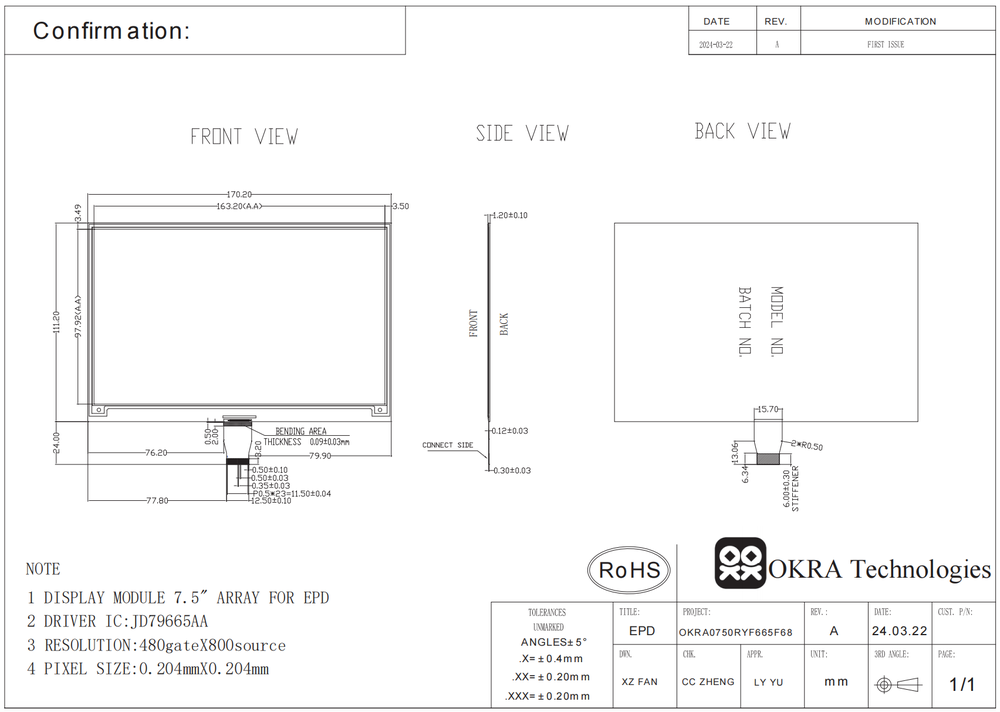

OUTLINE SIZE(mm) | 170.2x111.2x1.25 |
ACTIVE SIZE(mm) | 163.2x97.72 |
PIXEL PITCH(mm) | 0.204x0.204 |
OPERATING TEMP. | 0℃~50℃ |
STORAGE TEMP. | -25℃~70℃ |
CONNECTOR | 24 Pin FPC |
GRAYSCALE | 2 |
COLOR | Black,White,Red,Yellow |
INTERFACE | SPI |
FULL REFRESH TIME(s) | 20 |
TYPICAL POWER(mW) | 60 |
STANDBY POWER (mW) | 0.003 |
FRONT LIGHT, TOUCH SCREEN | Optional |

|
|
