Product description:
OKRA0750BNU790F30 is a 7.5 inch black and white color E-ink display, 800x480 resolution, 24pin FPC connection, communicated through SPI interface, with embedded controller (COG package) and on-chip waveform storage. Supports 2 grayscales and partial refresh.
Advantage: Ultra-wide viewing angle and ultra-low power consumption.
Ideal for shelf labels, smart home applications, industrial instruments, electronic conference table cards and other related products.
PART NUMBER | OKRA0750BNU790F30 |
TYPE | Dot Matrix |
SIZE | 7.5 inch |
IC | UC8179 |
RESOLUTION | 800x480 |
PPI | 124 |

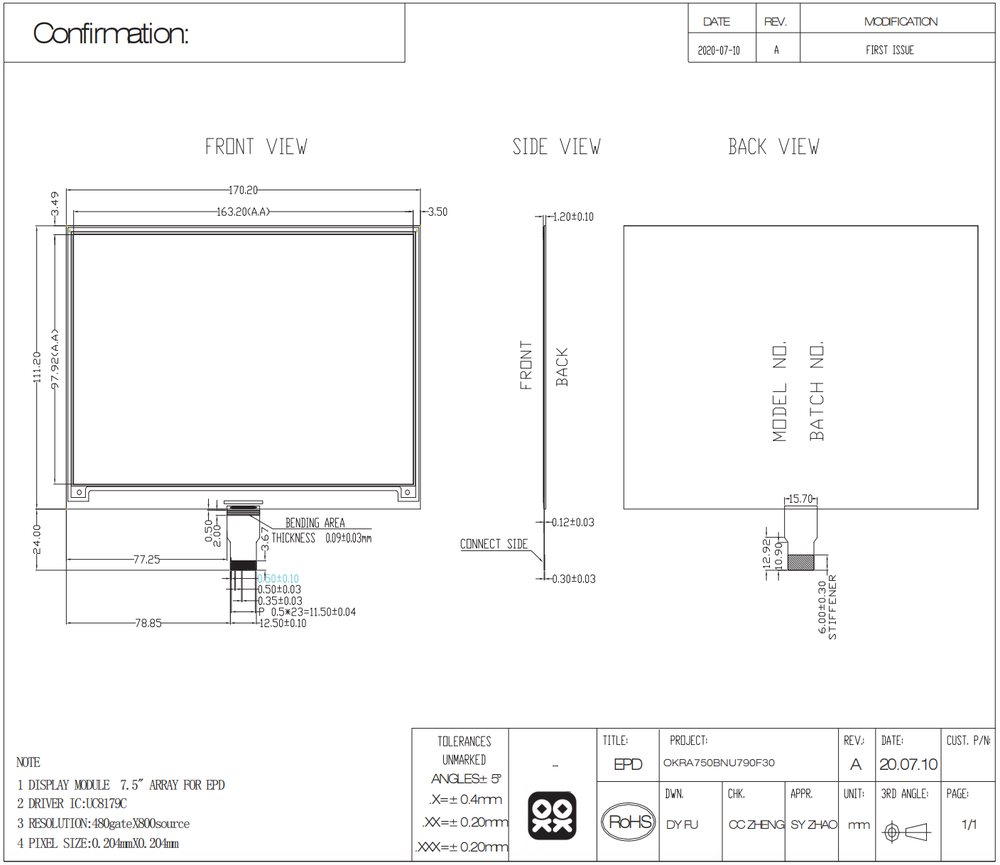

OUTLINE SIZE(mm) | 170.2x111.2x1.25 |
ACTIVE SIZE(mm) | 163.2x97.72 |
PIXEL PITCH(mm) | 0.204x0.204 |
OPERATING TEMP. | 0℃~50℃ |
STORAGE TEMP. | -25℃~70℃ |
CONNECTOR | 24 Pin FPC |
GRAYSCALE | 2 |
COLOR | Black,White |
INTERFACE | SPI |
FULL REFRESH TIME(s) | 4 |
PARTIAL REFRESH TIME(s) | 0.26 |
TYPICAL POWER(mW) | 26 |
STANDBY POWER (mW) | 0.003 |
FRONT LIGHT, TOUCH SCREEN | Optional |
|
|
