This board is an embedded program development tool for e paper displays.
Features:
With 24Pin, 50Pin dual interface, compatible with various sizes of e-paper display
supports two-color, three-color, four-color, seven-color SPI interface.
8-bit, 9-bit SPI interface is switched by switch.
All data transmission interfaces are led out through the 2.54 DuPont interface.
Product parameters:
24 Pin interface: supports 1.54-inch, 2.13-inch, 2.66-inch, 2.9-inch, 3.7-inch, 4.2-inch, 5.85-inch, 7.5-inch and other sizes of BW/BWR/BWRY e-paper display modules as well as 4-inch&7.3-inch spectra6 e-paper display modules.
50 Pin interface: support 3.0-inch, 4.4-inch, 7.3-inch and other four-color and seven-color e-paper display modules.2.54mm DuPont interface: outgoing interface and NFC interface.
PARAMETER | OK-TR01A |
PLATFORM | / |
FUNCTION | Driver Board/ Adapter Board |
SUITABLE SIZE | 1.54"/2.13"/2.66"/2.9"/3.7"/4.2"/ 5.83"/7.3"/7.5"/4"&7.3" Spectra 6 E-Paper Display |

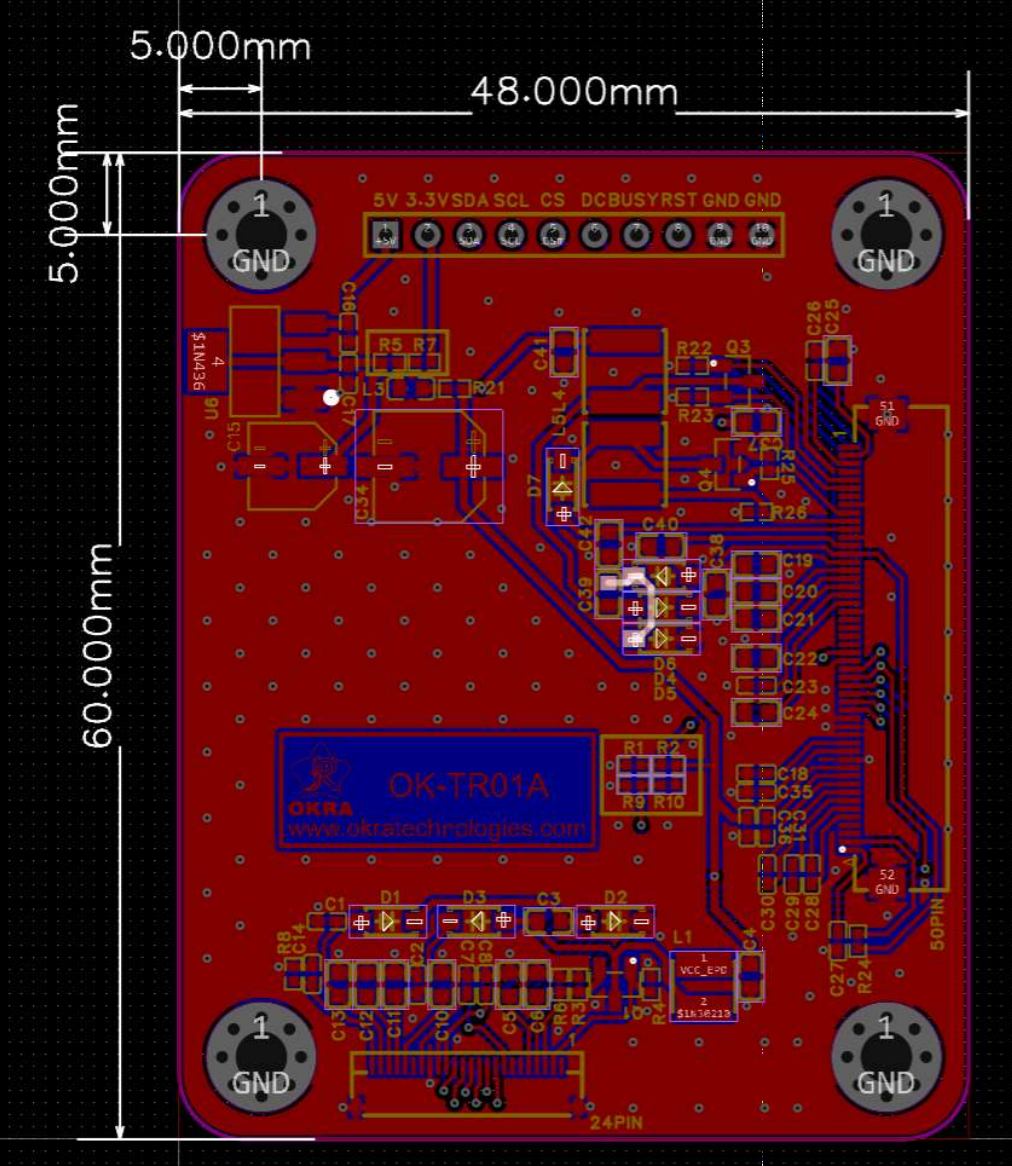

OUTSIDE DIMENSION | 60mmx48mm |
INTERFACE | USB SPI(8PIN) I80(24PIN) |
POWER INPUT | DC5V |
FEATURE | Compatible with all 24PIN/50PIN E-paper Display |
GRAYSCALE LEVEL | Max 16 Grayscale |
OPERATING TEMP. | -25℃~60℃ |
| RESERVED FUNCTION | Type-C, LED indicator, User-defined button, Reset button, Flash chip, Current detection |
MAIN FUNCTION | Drive/Test/Evaluate e-paper display; Quickly demonstrate the effects of e-paper display; Product comes with tf card, support one-click slideshow; Support secondary development; |
