OK-TC01A is a TCON (Timing Controller) Board specially developed for small and medium-size TTL interface eink screen. Support all mainstream EPD which is used for e-book products.
Features:
Provide 8bit 39P interface and 16bit 40P interface, which can directly drive ED060XCH, ED078KC2, ED103TC2, ED133UT3 and other eink screens. It can also drive more eink screens through external adapter cables or adapter board.
Provide USB/I80/SPI interface for connecting upper computer (PC or Linux platform or single chip computer)
PARAMETER | OK-TC01A |
PLATFORM | / |
FUNCTION | Driver Board/Tcon Board |
SUITABLE SIZE | 6"/7.8"/10.3"/13.3“ BW and 13.3" Kaleido Color E-paper Display |

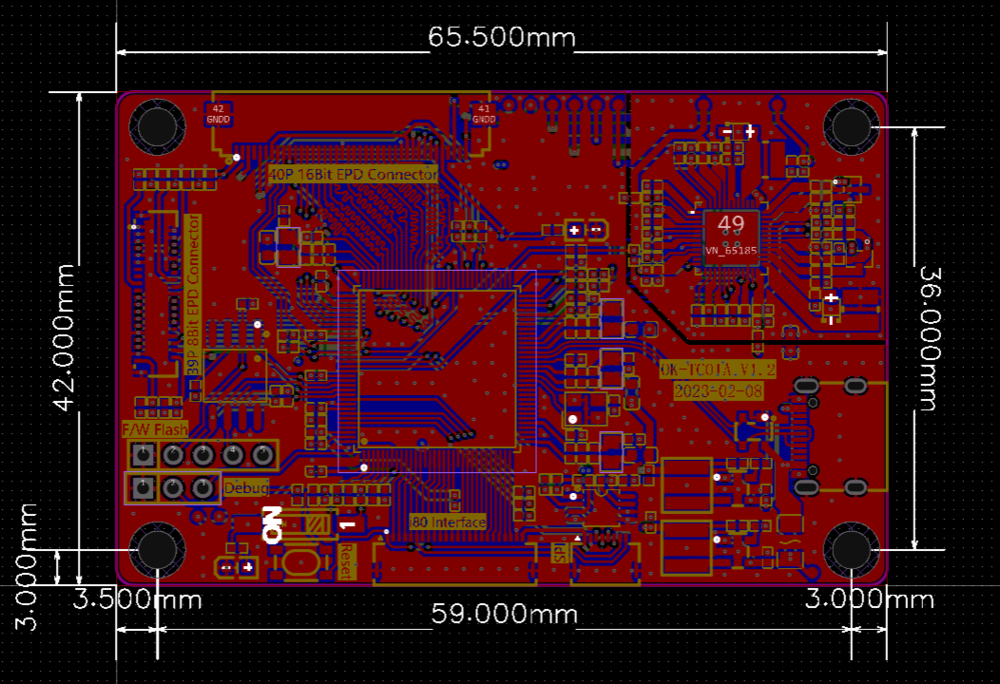

OUTSIDE DIMENSION | 42mmx65.5mm |
INTERFACE | Type-C |
POWER INPUT | DC5V |
FEATURE | Compatible with all mainstream BW e-book products on the market |
GRAYSCALE LEVEL | Max 16 Grayscale |
OPERATING TEMP. | -25℃~60℃ |
| RESERVED FUNCTION | Type-C, LED indicator, User-defined button, Reset button, Flash chip, Current detection |
MAIN FUNCTION | Drive/Test/Evaluate e-paper display; Quickly demonstrate the effects of e-paper display; Product comes with tf card, support one-click slideshow； Support secondary development; |
OK-TC01A User Manual.pdf | 1.16MB | Download |
|
|
