OK-TC04A-T2000 is a Tcon board specially designed and developed for large-size mini-LVDS E Ink Display. Based on E Ink T2000 Timing Control Chip.
Onboard power supply module, support six Source drive voltage, three Gate drive voltage, three VCOM voltage.
Completely support for B&W, Kaleido, Gallery, Spectra6 E Paper Display types, as well as DCVCOM and ACVCOM scenarios.
On-board USB, SPI, MIPI and other host computer interfaces, with the ability to adapt to a variety of use scenarios.
High-quality four-layer board with immersed gold technology, to cope with harsh environments and ensure high reliability.
The following EPD models are supported：
*Customized service is supported.
PARAMETER | OK-TC04A |
PLATFORM | T2000 |
FUNCTION | Tcon Board |
SUITABLE SIZE | 25.3"/28"/31.2"/42" E-Paper Display |

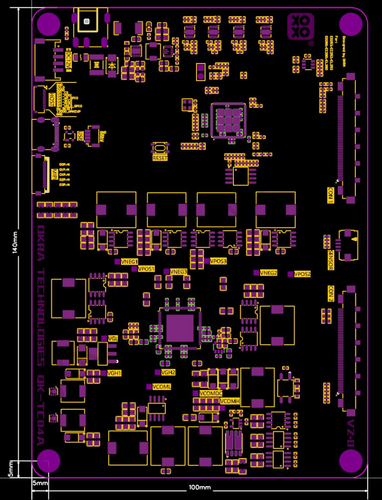

OUTSIDE DIMENSION | 140x100mm |
INTERFACE | USB、SPI、MIPI |
POWER INPUT | DC 12V |
FEATURE | Designed and developed specifically for large-size mini-LVDS interfaces port E Paper Display |
GRAYSCALE LEVEL | Max 16 Grayscale |
OPERATING TEMP. | -25℃~60℃ |
| RESERVED FUNCTION | Type-C, LED indicator, User-defined button, Reset button, Flash chip, Current detection |
MAIN FUNCTION | Drive/Test/Evaluate e-paper display; Quickly demonstrate the effects of e-paper display; |
OK-TC04A-T2000 V2.0 specs.pdf | 817.59KB | Download |
|
|
