OK-DEV01C is equipped with the ESP32-S3 chip, it is compatible with 7.3inch Spectra 6 technology color e ink display and all mainstream epd from 1.54-7.5inch
The content of the e-paper display can be easily updated through TF Card.
Features:
Even power off, the last image of the screen can be kept for a long time.
Support BLE/WIFI function, and (If customized) you can choose from a variety of ways （WIFI/NFC/4G）to update the display.
Using data compression transmission technology, the entire screen data is transmitted in only seconds.
*Customized service is supported.
PARAMETER | OK-DEV01C |
PLATFORM | ESP32-S3 |
FUNCTION | Driver Board/Tcon Board |
SUITABLE SIZE | 1.54"/2.13"/2.66"/2.9"/3.7"/4.2"/ 5.83"/7.3"/7.5"/4"&7.3" Spectra 6 E-Paper Display |

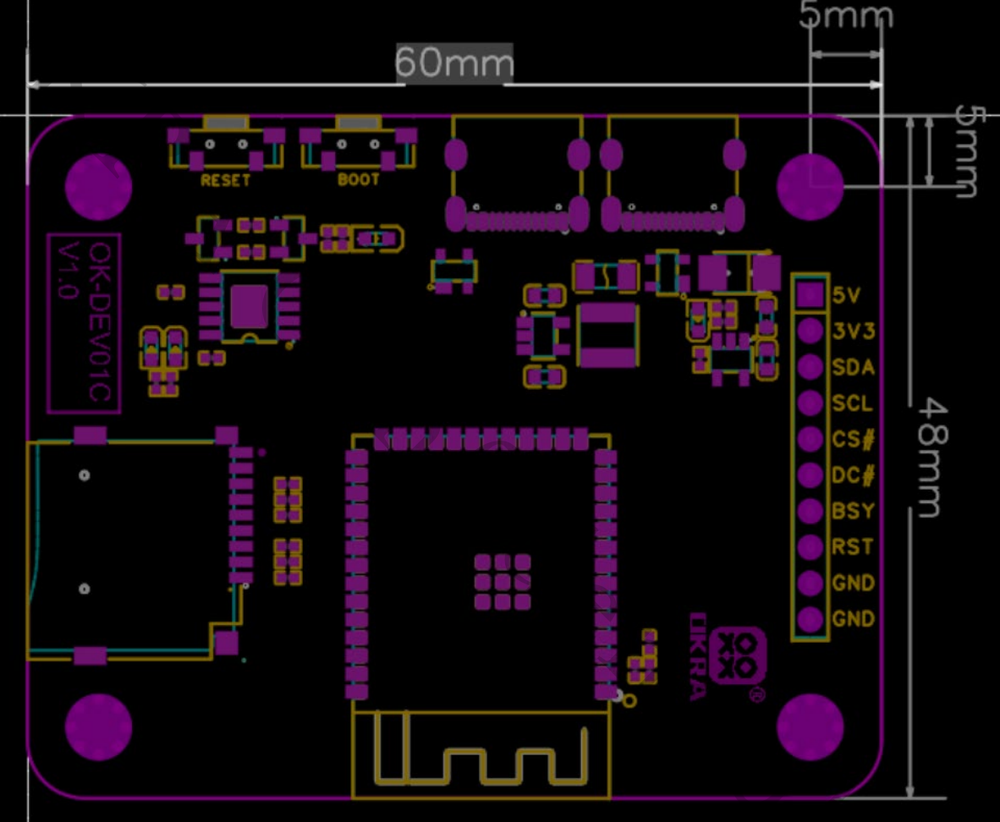

OUTSIDE DIMENSION | 60mmx48mm |
INTERFACE | Type-C |
POWER INPUT | DC5V |
FEATURE | Support Wi-Fi and Bluetooth communication |
GRAYSCALE LEVEL | Max 16 Grayscale |
OPERATING TEMP. | -25℃~60℃ |
| RESERVED FUNCTION | Type-C, LED indicator, User-defined button, Reset button, Flash chip, Current detection |
MAIN FUNCTION | Drive/Test/Evaluate e-paper display; Quickly demonstrate the effects of e-paper display; Product comes with tf card, support one-click slideshow； Support secondary development; |
OK-DEV01C User Manual.pdf | 729.85KB | Download |
|
|
