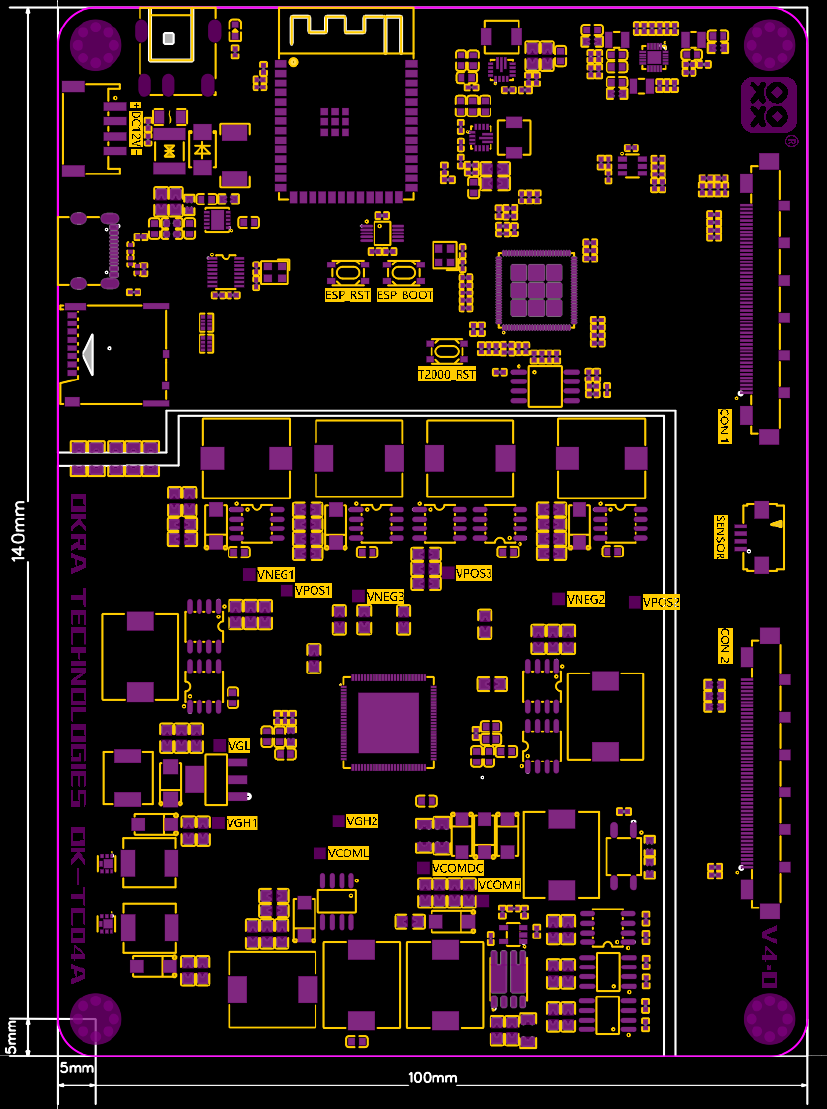

OK-TC04A-T2000 V4.0 is a Tcon board specially designed and developed for large-size mini-LVDS E Ink Display. Based on E Ink T2000 Timing Control Chip.

This version has added the ESP32-S3 as the main chip, which can serve as a main board.

Onboard   power supply module, support six Source drive voltage, three Gate drive voltage, three VCOM voltage.

Completely support for B&W, Kaleido, Gallery, Spectra6 E Paper Display types, as well as DCVCOM and ACVCOM scenarios.

On-board USB, SPI, MIPI and other host computer interfaces, with the ability to adapt to a variety of use scenarios.

High-quality four-layer board with immersed gold technology, to cope with harsh environments and ensure high reliability.

The following EPD models are supported：

28 Inch：   B&W、Kaleido、Gallery（EOL）、Spectra 6

28.5 Inch： Spectra 6 (Sharp A2)

*Customized service is supported.
