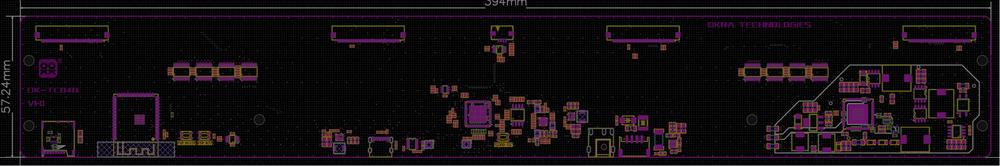

OK-TC04B is compatible with the 31.2" B/W E-Paper Display.

The product is equipped with ESP32-S3 chip, which is convenient for R & D personnel to quickly start project development and product demonstration,

and can be updated through Bluetooth wifi and other communication methods.

The product can be customized

Features:

Based on E Ink T2000 ink screen timing control chip.

Onboard complete E-paper display power supply module, supporting six source drive voltages, three gate drive voltages, and three VCOM voltages.

Onboard OCP and OVP protection circuits protect the power supply system and the driver board itself from surges.

Onboard USB, SPI, MIPI and other host computer interfaces, capable of adapting to various usage scenarios.

High-quality four-layer PCB immersion gold process, can easily cope with harsh use environment and ensure high reliability.

Onboard temperature sensor, eliminating the need for an external sensor board.

Onboard ESP32S3-WROOM-1-N16R8 high-capacity module, usable as a motherboard.

Onboard USB hub chip, allowing a host computer to simultaneously connect to the T2000 and ESP32S3's native USB port and debug serial port via USB interface.

Onboard TF card interface for storing data or images on the ESP32S3.

*Customized service is supported.
