OK-TC04C is compatible with the 42" B/W E-Paper Display.
Based on E Ink T2000 Timing Control Chip.
Onboard power supply module, support six Source drive voltage, three Gate drive voltage, three VCOM voltage.
On-board USB, SPI, MIPI and other host computer interfaces, with the ability to adapt to a variety of use scenarios.
High-quality four-layer board with immersed gold technology, to cope with harsh environments and ensure high reliability.
The following EPD models are supported：
42 Inch B&W
*Customized service is supported.
PARAMETER | OK-TC04C |
PLATFORM | T2000 |
FUNCTION | Tcon Board |
SUITABLE SIZE | 42" E-Paper Display |

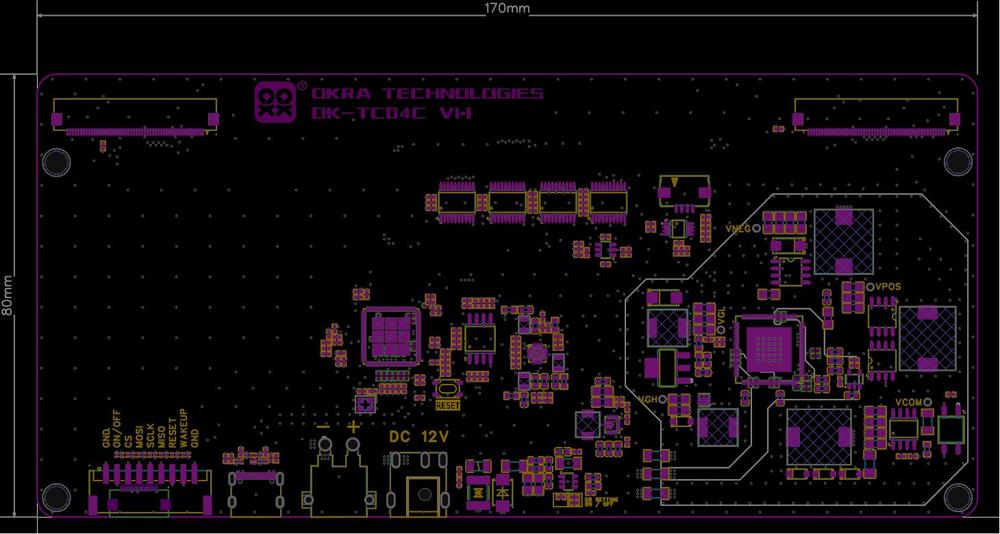

OUTSIDE DIMENSION | 170x80mm |
INTERFACE | USB、SPI、MIPI |
POWER INPUT | DC 12V |
FEATURE | Designed and developed specifically for large-size mini-LVDS interfaces port E Paper Display |
GRAYSCALE LEVEL | Max 16 Grayscale |
OPERATING TEMP. | -25℃~60℃ |
| RESERVED FUNCTION | Type-C, LED indicator, User-defined button, Reset button, Flash chip, Current detection |
MAIN FUNCTION | Drive/Test/Evaluate e-paper display; Quickly demonstrate the effects of e-paper display; |
OK-TC04C V1.1_sepcs.pdf | 506.82KB | Download |
|
|
