This product is compatible with the 10-inch Spectra 6 Eink Display.
The product is equipped with ESP32-S3 chip,
which is convenient for R & D personnel to quickly start project development and product demonstration,
and can be updated through Bluetooth wifi and other communication methods.
Features:
Even power off，it can keep the display content of the last screen for a long time.
Supports the Bluetooth BLE/WIFI function, and (If customized) you can choose from a variety of ways （WIFI/NFC/4G）to update the display.
Using data compression transmission technology, the entire screen data is transmitted in only seconds.
It can be customized according to customer needs.
PARAMETER | OK-TC05B |
PLATFORM | ESP32-S3 |
FUNCTION | Driver Board/Main Board |
SUITABLE SIZE | 10" Spectra 6 E-Paper Display |

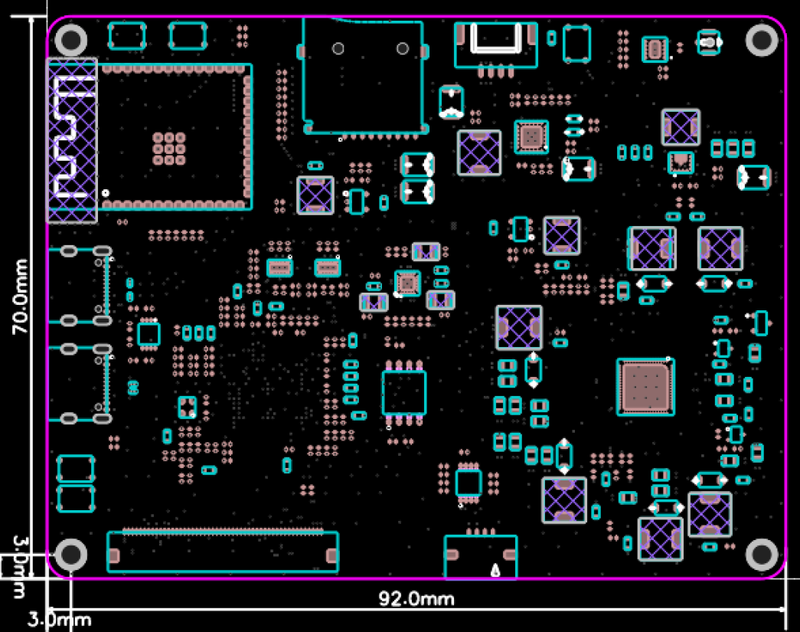

OUTSIDE DIMENSION | 92mmx70mm |
INTERFACE | USB/SPI |
POWER INPUT | 5V-12V |
FEATURE | Support Wi-Fi and Bluetooth communication |
GRAYSCALE LEVEL | Max 16 Grayscale |
OPERATING TEMP. | -25℃~60℃ |
| RESERVED FUNCTION | Type-C, LED indicator, User-defined button, Reset button, Flash chip, Current detection |
MAIN FUNCTION | Drive/Test/Evaluate e-paper display; Quickly demonstrate the effects of e-paper display; Product comes with tf card, support one-click slideshow； Support secondary development; |
OK-TC05B-T2001 V2.0 specs.pdf | 605.97KB | Download |
|
|
