OK-CTC73A MainBoard For 7.3 Inch 7-color E Paper Conference Table Card (Bluetooth Version )

OKRA TECHNOLOGIES

PRODUCTS

—

OK-CTC73A MainBoard For 7.3 Inch 7-color

E Paper Conference Table Card (BLE Version )

OVERIEW

SPECIFICATION

DOWNLOAD

This board is used for 7.3inch 7-color EPD (Double sides) conference table card.

The content of the display can be easily updated through the Android APK.

Features:

No need for backlight, even power off, the last image of the screen can be kept for a long time.

Support the Bluetooth/WIFI function, and (if customized)you can choose from a variety of ways （WIFI/NFC/4G）to update the display.

Using data compression transmission technology, the entire screen data is transmitted in only seconds.

*Customized service is supported.

PARAMETER	OK-CTC73A
PLATFORM	PHY6220
FUNCTION	Main Board
SUITABLE SIZE	7.3 inch 7-color E-Paper Display

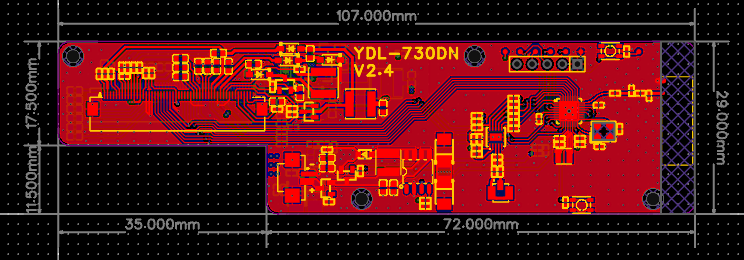

OUTSIDE DIMENSION	107mmx29mm
INTERFACE	Type-C
POWER INPUT	DC5V
FEATURE	Support Bluetooth/NFC
GRAYSCALE LEVEL	Max 16 Grayscale
OPERATING TEMP.	-25℃~60℃
RESERVED FUNCTION	Type-C, LED indicator, User-defined button, Reset button, Flash chip, Current detection
MAIN FUNCTION	Drive/Test/Evaluate e-paper display; Quickly demonstrate the effects of e-paper display; Product comes with tf card, support one-click slideshow； Support secondary development;
