OK-CTC75A MainBoard For 7.5 Inch 3-color

E Paper Conference Table Card (BLE Version )

OVERIEW

SPECIFICATION

DOWNLOAD

This board is used for 7.5inch 3-color EPD (Double sides) conference table card.

The content of the display can be easily updated through the Android APK.

Features:

No need for backlight, even power off, the last image of the screen can be kept for a long time.

Supports the Bluetooth/WIFI function, and (if customized) you can choose from a variety of ways （WIFI/NFC/4G）to update the display.

Using data compression transmission technology, the entire screen data is transmitted in only seconds.

*Customized service is supported.

PARAMETER	OK-CTC75A
PLATFORM	PHY6220
FUNCTION	Main Board
SUITABLE SIZE	7.5" 3-color E-Paper Display

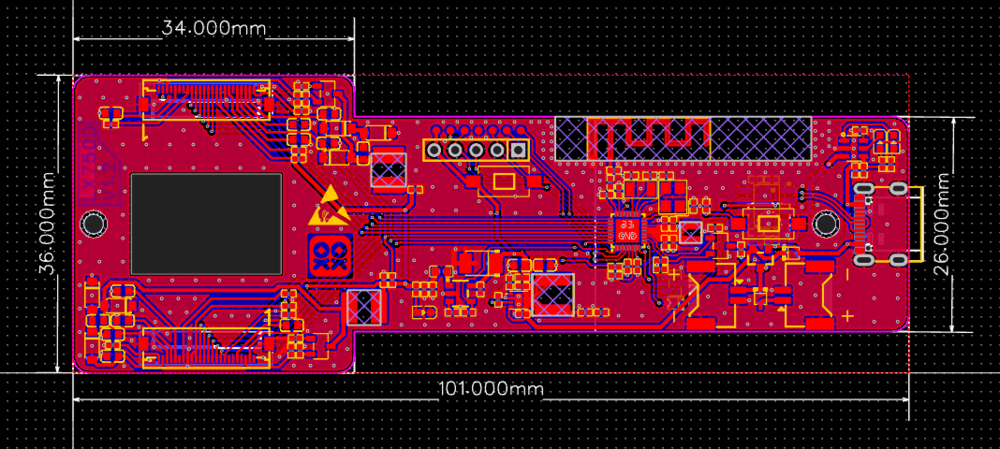

OUTSIDE DIMENSION	101x36mm
INTERFACE	Type-C
POWER INPUT	DC5V
FEATURE	Support Bluetooth/NFC
GRAYSCALE LEVEL	Max 16 Grayscale
OPERATING TEMP.	-25℃~60℃
RESERVED FUNCTION	Type-C, LED indicator, User-defined button, Reset button, Flash chip, Current detection
MAIN FUNCTION	Drive/Test/Evaluate e-paper display; Quickly demonstrate the effects of e-paper display; Product comes with tf card, support one-click slideshow； Support secondary development;
